Features

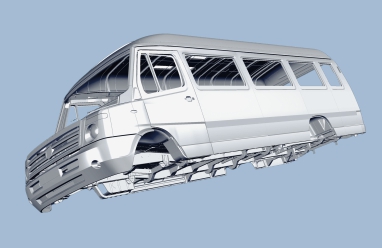

Lighter & Stronger pressed steel body with Monocoque construction. Outstanding structural strength and unmatched durability. Robotic Automated welding for best-in-class build quality.

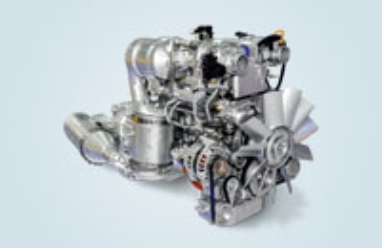

Powered by the Mercedes derived FM 2.6 CR ED BS-VI engine. Best in class fuel mileage.

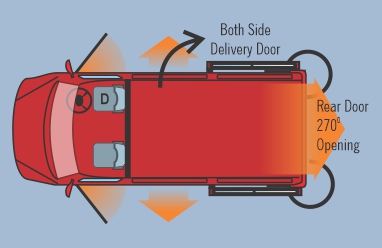

Option of sliding doors on driver and co-driver side in addition to 270 degree opening rear door. Ensures easy loading and unloading of cargo. Low loading height for T2 775 mm.
Sliding door (option) for kerb side delivery

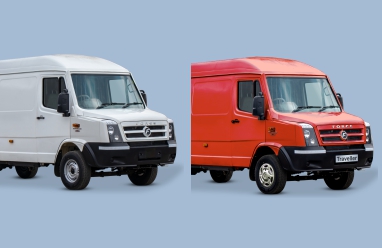

Red & White colour options
Technical Specification
| engine | |
|---|---|
| Type | 4 Cyl. Common Rail, DI TCIC |
| Max. Torque | 350 Nm @ 1400 - 2200 rpm |
| Displacement (cc) | 2596 |
| Bore x Stroke (mm) | 90.0 X 100 |
| Max. Engine Output | 115hp (85KW) @ 2950 rpm |
| clutch | |
|---|---|
| Clutch | Dry friction, single plate & hydraulically actuated |
| gear box | |
|---|---|
| Type | Synchromesh |
| Model | G32-5 |
| No. of gears | 5 Front + 1 Reverse |
| steering | |
|---|---|
| Type / Description | Power Steering |
| body | |
|---|---|
| Type | Monocoque Construction |
| Suspension | |
|---|---|
| Front & Rear | Spring Semi-elliptical |
| Anti roll bar | Rront-Yes, Rear (Optional) |
| Shock absorbers | Hydraulic telescopic double acting at front and rear |
| brake | |
|---|---|
| Rear | Drum |
| Type | Dual circuit, hydraulic, vaccum assisted |
| Front | disc |
| ABS with EBD | Optional |
| Parking brake | Mechanical acting on rear wheel |
| Auto Slack Adjuster | Yes |
| fuel tank | |
|---|---|
| Capacity (l) | 70 litrs |
| dimensions (MM) | |
|---|---|
| Wheel Base | 4020 |
| Overall Width | 2225 |
| Overall Height | 2670 |
| Overall Length | 6970 |
| Ground Clearance | 200 |
| cargo box lxwxh (mm) | |
|---|---|
| Cargo Area (M2) | 9.3 |
| Cargo Vol.(M 3) | 17.4 |
| Cargo Box LxWxH (Mm) | 3300 x 1680 x 1830 |
| wheels & tyres | |
|---|---|
| Tyre Size | 215 / 75 R 15 |
| Tyre Type | Radial with Tube / Tubeless (6+1) |
| weights | |
|---|---|
| Payload (kg) | 2515 |
| Maximum GVW (kg) | 5700 |
| Seating capacity | |
|---|---|
| Seating Capacity | 1+D |
